Product summary

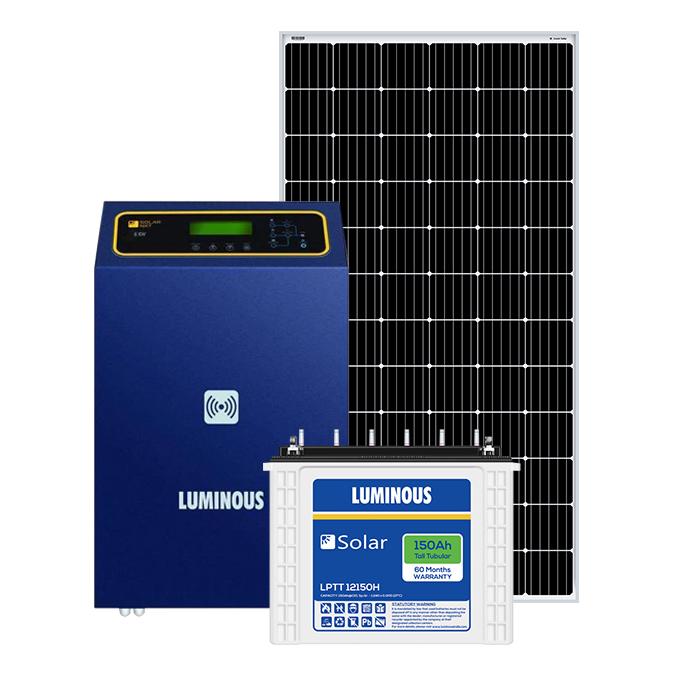

Luminous 7.5 KVA solar system is a designed to make firm house, shops, offices to be self dependent on energy. It is a preferred choice for customers having frequent power cuts in home and commercial shops. It generates 25 kwh / units a day using sun power, batteries are provide for power storage and it stores 15000 watt hour of electricity to be used at night or in emergency.
Main products
Inverter - NXT+ 7.5 KVA
Battery - 150 Ah (8 nos.)
Solar Panels - 5 kWp (350 watt * 15 nos.)
Backup time
Load |
3000 W |
2400 W |
1800 W |
1200 W |
600 W |
Duration |
3 hrs 30 mint |
4 hrs 50 mints |
6 hrs 30 mint |
9 hrs 50 mint |
19 hrs |
Technical Details
inverter model |
NXT+ 7.5 KVA |
inverter capacity |
6 kw |
efficiency |
Inverter - 97%, Module >16% |
module type |
mono-crystalline |
battery included |
yes |
standard installation included |
Yes |
installation cost |
₹15000 per kwp |
protections |
Overload, deep discharge, short-circuit, Battery low cut off |
Here is attached engineering diagram and data sheet to install the system.
